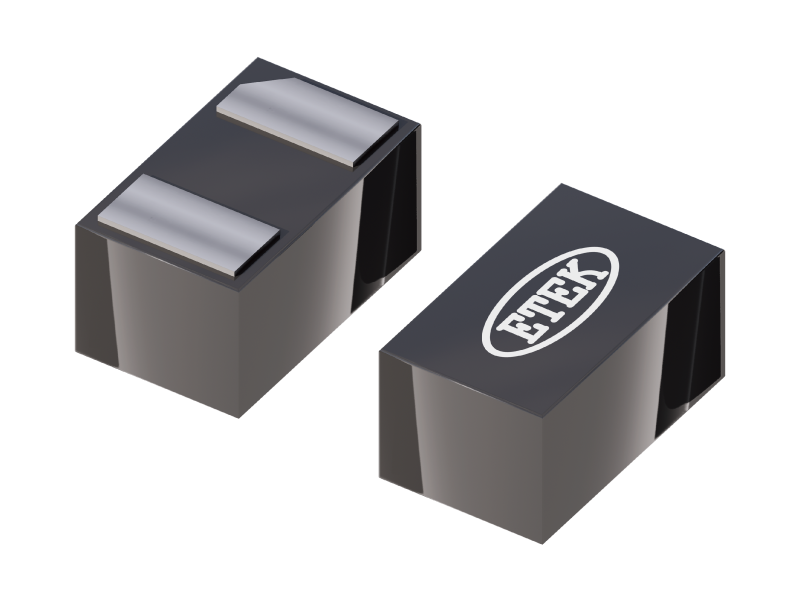

Product picture |
PartNumber |
Type
请选择
请选择
Uni-direction
|
VRWM (V)
请选择
请选择
4.85
6.3
7.9
9
12
15
20
|
VBR (V)
请选择
请选择
13.3~16
16~20
22~26
5~7
6.8~8.5
8~10
Min 9.5
|
IPP (A)
请选择
请选择
28
32
33
35
40
45
50
|
VC@IPP (V)
请选择
请选择
9
12
14
15.5
21.5
24.5
28
|
Cj (pF)
请选择
请选择
90
160
180
185
230
260
290
|
ESD-contact(kV)
请选择
请选择
±30
|
Package
请选择
请选择
DFN1006-2L
|
|---|---|---|---|---|---|---|---|---|---|
|
ES20DFX | Uni-direction | 20 | 22~26 | 33 | 28 | 90 | ±30 | DFN1006-2L |
|
ES15DFCX | Uni-direction | 15 | 16~20 | 28 | 24.5 | 180 | ±30 | DFN1006-2L |
|
ES12DFX | Uni-direction | 12 | 13.3~16 | 32 | 21.5 | 185 | ±30 | DFN1006-2L |
|
ES09DFX | Uni-direction | 9 | Min 9.5 | 40 | 15.5 | 260 | ±30 | DFN1006-2L |
|
ES79DFVXM | Uni-direction | 7.9 | 8~10 | 45 | 14 | 290 | ±30 | DFN1006-2L |
|
ES6V3DFX | Uni-direction | 6.3 | 6.8~8.5 | 35 | 12 | 230 | ±30 | DFN1006-2L |
|
ES4850DFHX | Uni-direction | 4.85 | 5~7 | 50 | 9 | 160 | ±30 | DFN1006-2L |
